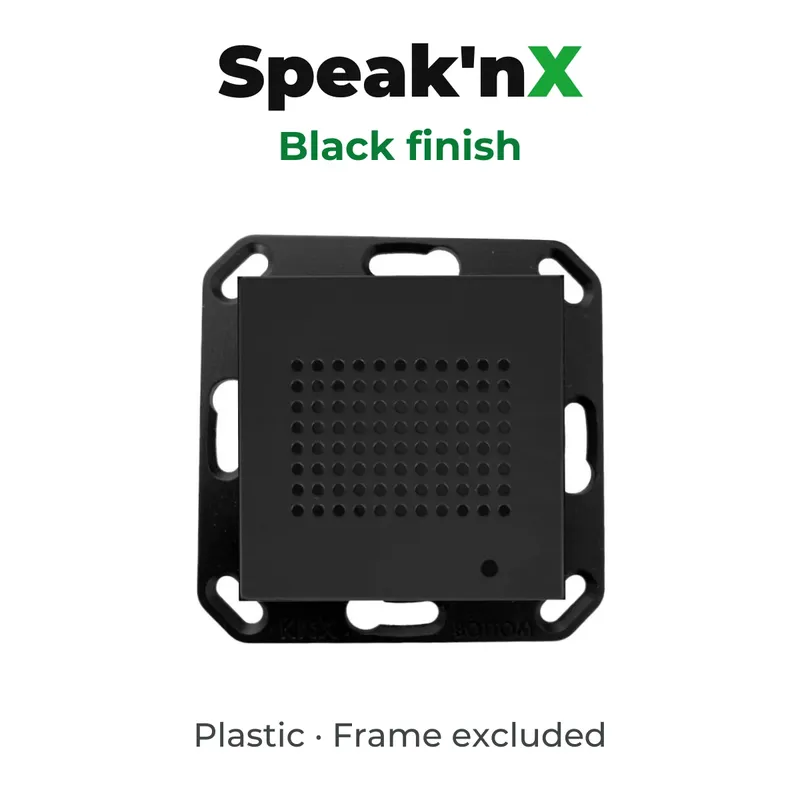

Speakn'X loudspeaker, plastic finish, black, frameless
It is the first chime that can be customized and integrated into a KNX installation. It also allows broadcasting pre-recorded vocal messages to warn of alerts, technical alarms, time delays, actions, or statuses in a clear and explicit way. Additionally, it incorporates two inputs: a temperature and humidity sensor, with values transmitted using KNX protocol. Finally, WiFi and Bluetooth connectivity will enable it to perform more advanced functions in the future.
Features:
- Autonomous chime with two customizable ring tones via two inputs.
- Broadcasting of messages and/or ringing tones with up to 50 melodies triggered by KNX datagram.
- Temperature and humidity sensor, transmitted to KNX.
- Two binary inputs for connecting push buttons for lighting, motorization, and doorbell functions.
- Customized metal finish available in the Meljac brand range
Manual and ETS file
See the wiki for how to request the correct manual for your Speak’nX reference.
+++ Customizable product
- Customizable bell with up to 50 messages or melodies in MP3 or WAV format...
- Customizable finish (white, black, metal from the Meljac range...)
- Unlimited functions and uses
- Multilingual message delivery
+++ KNX product
- 2 binary inputs
- Temperature and humidity sensor
- Adjustable RGBW indicator on the front panel
- Alarm or status offset can be synchronized via bus
+++ Connected product
- Connected doorbell with notification (requires third-party product)
- Integrated WiFi and Bluetooth chip
- Beacon function and location in a building
- Remote chime for 2N videophone
+++ Technical specifications
- KNX TP, S-Mode (ETS), 30V, 5mA
- WiFi: 802.11 b/g/n/e/l
- Bluetooth: 2.4GHz, classic +, BLE, v4.2
- Auxiliary power supply 36V DC 5W
- Dimensions: 55x55 or 80x80 metal cover plate, Standard box depth: 50 mm
- 2W speaker
- Made in Europe
- 2-year guarantee
It is the first chime that can be customized and integrated into a KNX installation. It also allows broadcasting pre-recorded vocal messages to warn of alerts, technical alarms, time delays, actions, or statuses in a clear and explicit way. Additionally, it incorporates two inputs: a temperature and humidity sensor, with values transmitted using KNX protocol. Finally, WiFi and Bluetooth connectivity will enable it to perform more advanced functions in the future.
Features:
- Autonomous chime with two customizable ring tones via two inputs.
- Broadcasting of messages and/or ringing tones with up to 50 melodies triggered by KNX datagram.
- Temperature and humidity sensor, transmitted to KNX.
- Two binary inputs for connecting push buttons for lighting, motorization, and doorbell functions.
- Customized metal finish available in the Meljac brand range
